Ci5-V loudspeaker, IP65 rated, white

Cornered Audio

SKU: 60920

Login to view price Sale price

Regular price Login to view price

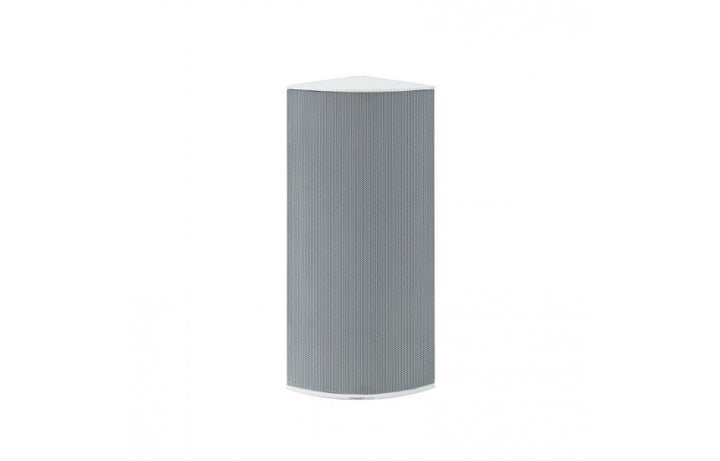

Ci5 is a very versatile and compact 2-way full-range speaker with strong output and solid bass performance. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few speakers, which makes the Ci5 especially suited for indoor and outdoor commercial installations. The patented triangular Cornered design and our new sliders ensure fast and easy installation, flush in corners or onto walls and ceilings without brackets. Cabinets can be coupled together to increase coverage to 180, 270 or 360 degrees.

With the patented triangular Cornered design, installation is fast and easy and the IP65 rating enables both in- and outdoor use. The IP65 certification means that the loudspeakers are approved for outdoor use, and the whole Ci series is therefore ideal for hotels with outdoor pool areas, who want the same look and installation and maintenance setup bot outside and inside.

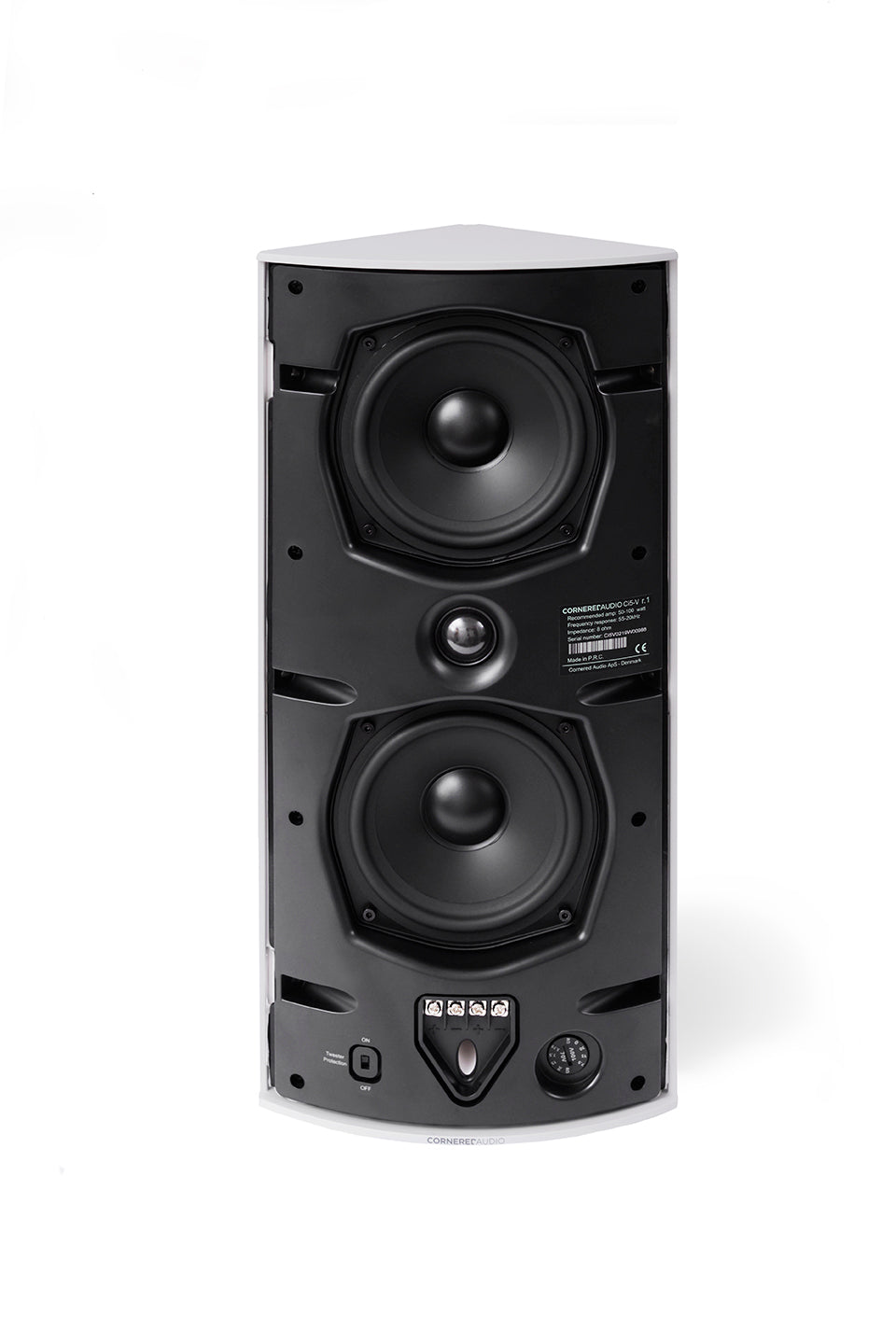

The cable terminal is hidden making the cable connection invisible both in vertical and horizontal applications. The tweeter features a switchable protection circuit for added safety and the Ci5-V model can be run in either 8 ohms or 70/100 volt. In high-impedance mode, tap settings for 3,5 – 7,5 – 15 or 30-watt output is conveniently located on the front baffle.

Ci5 is the perfect elegant speaker solution for commercial installations in hotels and meeting rooms.

5 ¼” woofer + 5 ¼” slave
1” silk dome tweeter
IP65 rated
Triangular ABS cabinet
Switchable tweeter protection
Hidden cable connection
Switchable 100/70V mode/8 ohm mode
Get it in black or white

Specifications

  • Power handling, IEC268: 80 watt
  • Power handling, peak: 320 watt
  • Sensitivity, 2,83V/1m: 88 dB
  • Maximum SPL, long term: 107 dB
  • Maximum SPL, peak: 113 dB
  • Frequency response: 55-20.000 Hz
  • Nominal impedance: 8 ohm
  • Weight: 3,5 kg
  • Measurement: 450x209x150mm
