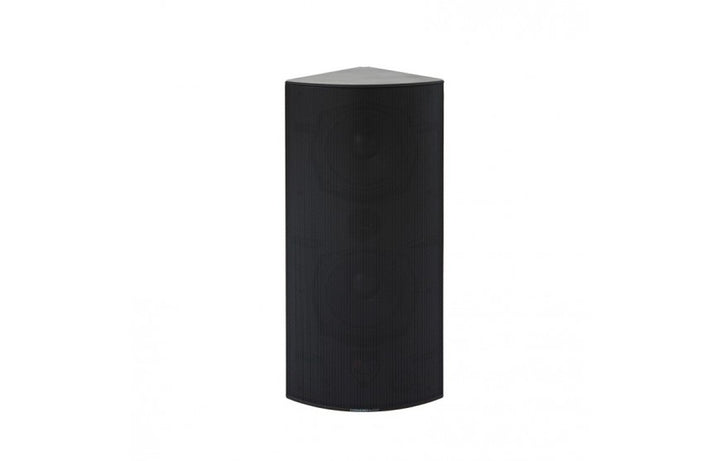

Ci4-V loudspeaker, IP65 rated, black

Cornered Audio

SKU: 60908

Login to view price Sale price

Regular price Login to view price

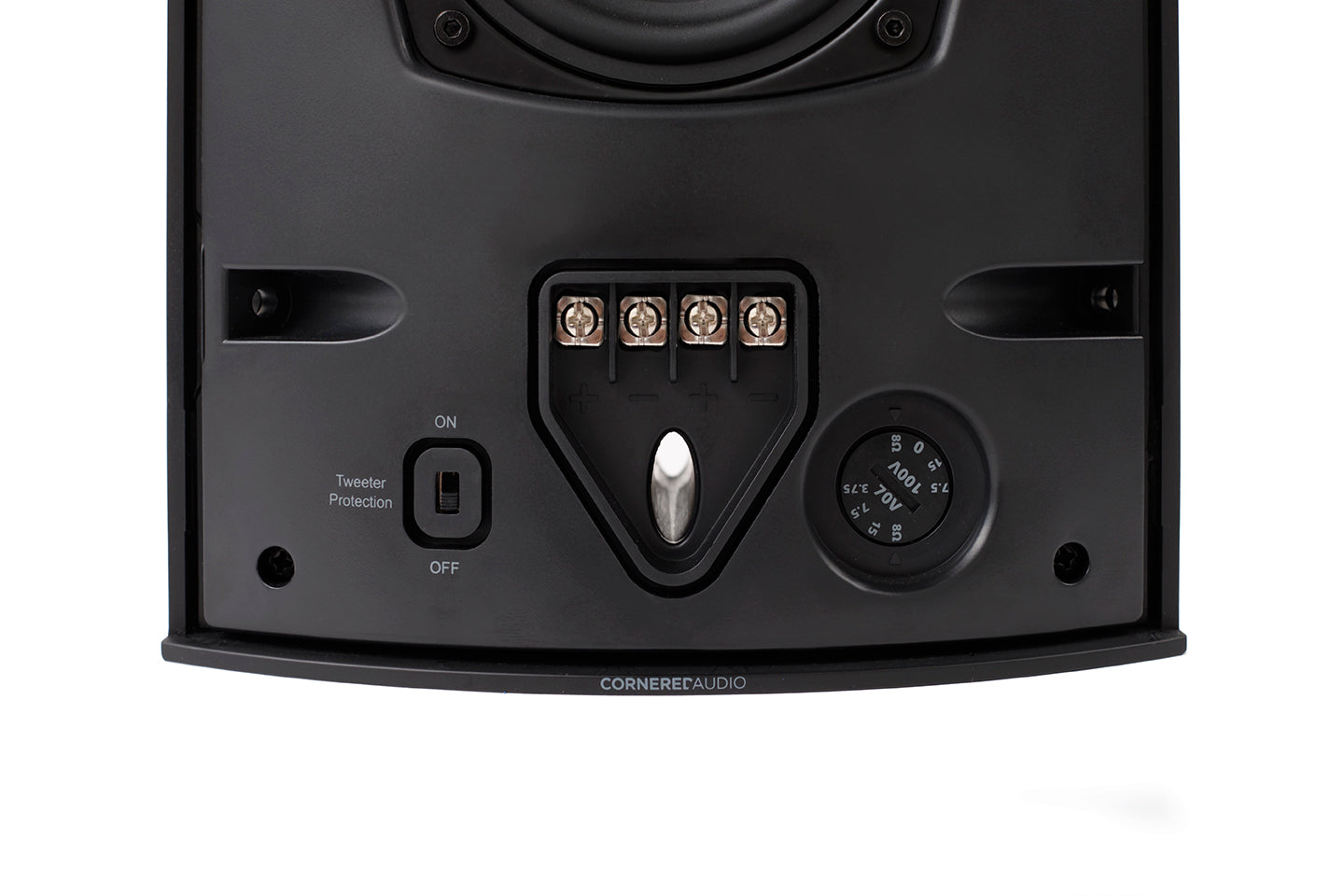

Ci4-V is similar to the Ci4, but with switchable high impedance mode. In high-impedance mode, the Ci4-V has tap settings for 3,5 – 7,5 or 15-watt output conveniently located on the front baffle.

Ci4-V is a feature-packed compact 2-way full-range speaker with medium output. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few speakers, which makes the Ci4-V especially suited for indoor and outdoor commercial installations. It features an advanced passive woofer design that enables the compact cabinet to deliver full-range bass.

With the patented triangular Cornered design, installation is fast and easy and the IP65 rating enables both in- and outdoor use. The IP65 certification means that the loudspeakers are approved for outdoor use, and the whole Ci series is therefore ideal for hotels with outdoor pool areas, who want the same look and installation and maintenance setup bot outside and inside.

The patented triangular cabinet features integrated mounting points allowing the cabinet to mount flush in corners or onto walls and ceilings without brackets. And with a new slider system, installation is a flexible and easy one-man job.

Cabinets can be coupled together to increase coverage to 180, 270 or 360 degrees. The cable connection is invisible both in vertical and horizontal applications and the tweeter features a switchable protection circuit for added safety.

Ci4-V is the perfect aesthetic speaker solution for background sound in commercial installations such as cafes, hotels and retail shops.

4" woofer with 4” slave
1" silk dome tweeter
IP65 rated

Switchable tweeter protection
70/100V mode
Get it in black or white

Specifications

  • Power handling, IEC268: 60 watt
  • Power handling, peak: 240 watt
  • Sensitivity, 2,83V/1m: 86 dB
  • Maximum SPL, long term: 105 dB
  • Maximum SPL, peak: 111 dB
  • Frequency response: 70-25.000 Hz
  • Nominal impedance: 8 ohm
  • Weight: 3,15 kg
  • Measurement: 400x190x145mm

Downloads

Datapack

Manual
