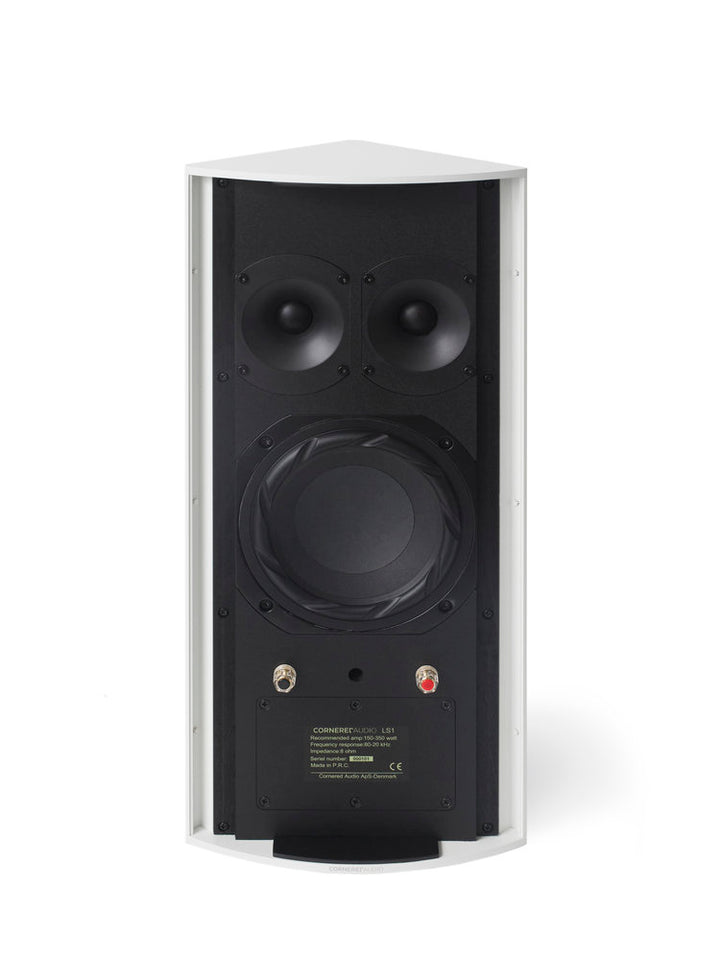

Description of LS1 compact speaker, white

LS1 is a very compact speaker designed to be flown horizontally in compact Line Source applications. Flying up to 6 pcs per side, the LS1 speakers are designed for medium to high SPL applications in Hotel Lobbies, Conference Rooms, and high SPL entertainment venues.  Flying 2 boxes will give a coverage of 90×50 degrees, 4 boxes 90×40 degrees and 6 boxes 90×30 degrees. An array of 2×6 pieces will deliver 105 dB in 30 meters in pure hi-fi sound quality.

Our Line Source speakers weigh less than 7 kg per speaker and offer a very high SPL-to-weight and SPL-to-size ratio. Drive units in the LS1 have been designed by the finest European manufacturers. The 6 1/2″ woofer of our Line Source speaker system features a strong neodymium magnet with state-of-the art-cooling and less than 1,8 dB power compression after 8 hours of maximum SPL.

The closely spaced 1″ horn-loaded dome tweeter in the LS1 offers excellent sensitivity and combines the output of a horn-loaded design with the clarity of a dome tweeter. The extruded aluminum cabinet is well dampened and the triangular shape minimizes standing waves inside the cabinet. LS1 speakers offer quality sound reproduction for applications where top performance is a must.

6 1/2" woofer with neo magnet
2x1" horn-loaded dome tweeter
Aluminum cabinet
Designed for high SPL applications
Get it in black, white or aluminum

Specifications

  • Power handling, IEC268: 250 watt
  • Power handling, peak: 1000 watt
  • Sensitivity, 2,83V/1m: 92 dB
  • Maximum SPL, long term: 116 dB
  • Maximum SPL, peak: 122 dB
  • Frequency response: 70-20.000 Hz
  • Nominal impedance: 8 ohm
  • Weight: 6,4 kg
  • Measurement: 502x232x167mm
